Computerized Fabric Edge Cutting Machine
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | YUTENG |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|
|
Détail Infomation |
|||
| Poids: | 750 kg | Composants de base: | API, moteur |
|---|---|---|---|
| Taille de la machine: | 3200*2200*2500 millimètres | Largeur de coupe: | 2400 millimètres |
| Longueur de coupe: | Min 30 cm-Infini | Vitesse de coupe: | Coupe verticale 10 m/min, coupe horizontale 5 s/coupe |
| Poids de la machine: | 600 kg | Puissance maximale: | 1,8 kW |
| Tension: | 380V/50Hz, à trois phases | Interface de PLC: | écran tactile de la couleur 5-inch |
| Alimentation des matériaux: | Barre de pression synchrone | Conception de machines: | Forme de boîte optimisée |
| Modèle: | Le code de conduite est le YTCM96-C. | Type de coupe: | Coupe transversale, refendage, coupe de bord |
| Phase: | Triphasé | ||
| Mettre en évidence: | computerized fabric cutting machine,edge cutting machine for textiles,computerized fabric trimmer with warranty |
||
Description de produit

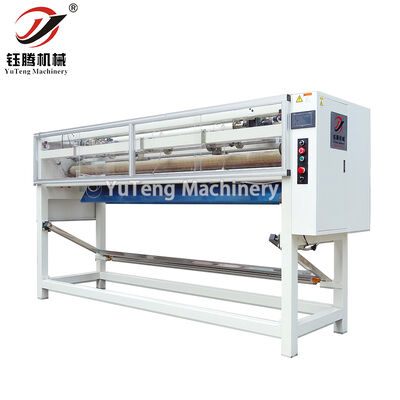

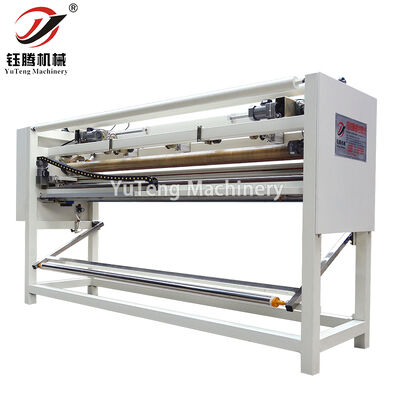

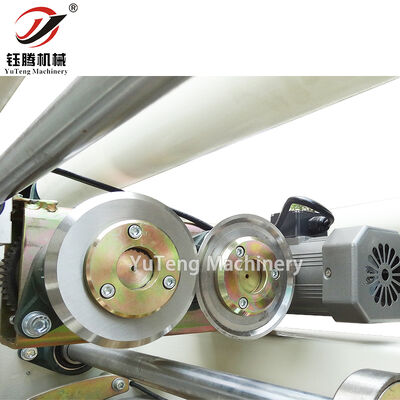

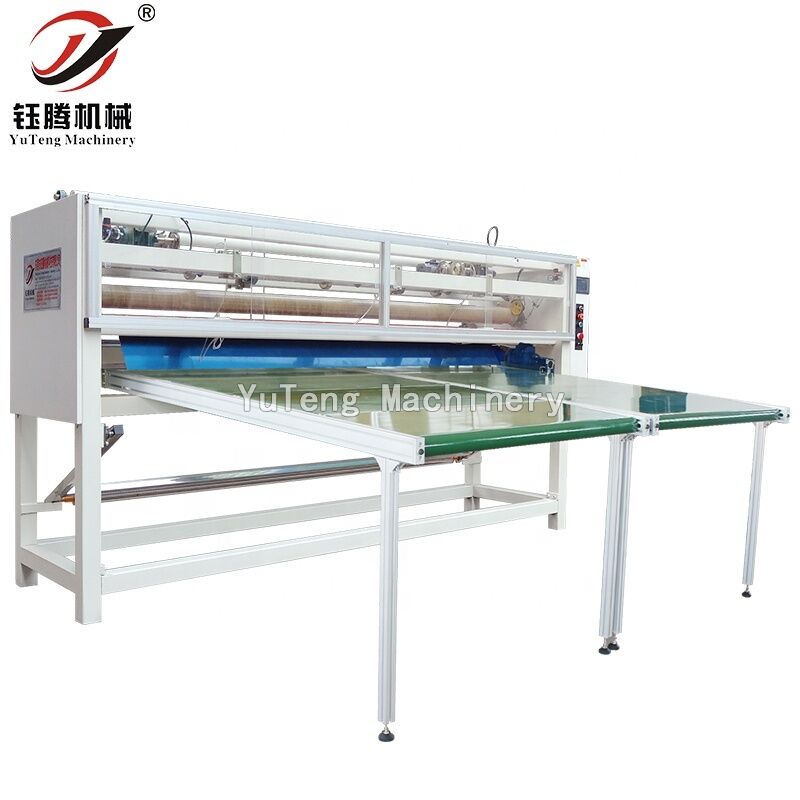

Computerized Fabric Edge Cutting Machine
Product Features
- 5-inch color touch screen PLC interface for easy operation
- CE-certified computer materials, electrical components, and motors for extended service life
- Electric length adjustment for both cutting length and width
- Synchronous pressure bar for even material feeding and smooth cutting, especially for thin material edge trimming
- Optimized box-shaped design improves running speed and cutting quality with higher efficiency
Applications
Ideal for seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, and composite products. Can also be used as a standalone machine.
Technical Specifications
| Model | YTCM96-C |
|---|---|
| Machine Dimensions (L×W×H) | 3200×2200×2500 mm |
| Cutting Width | 2400 mm (customizable) |
| Cutting Length | Minimum 30 cm to unlimited |
| Cutting Speed | Vertical cut: 10 m/min, Horizontal cut: 5 s/cut |
| Machine Weight | 600 kg |
| Maximum Power | 1.8 kW |
| Voltage | 380V/50HZ, 3-Phase |
* Customized models available to meet specific requirements
